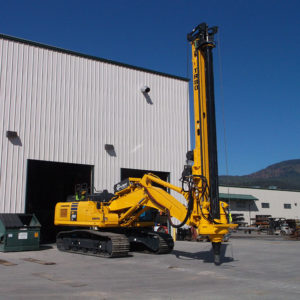

TR80-67 (2022) DATA

Specs

Call for Pricing; 102,000 lbs shipping weight; CARRIER Hydraulic interface panel configured for mounting to a New KOMATSU PC360 LC-11; 140” crowd stroke; level and depth indicator; crowd bypass manifold; Rotary Slow (Variable drill rpm); Three Function Control; Drill lock – yes; Stock Shortened Boom; Custom 48” Boom Cut; additional counterweight 10,000 lbs.

Location

Rathdrum, Idaho

CA HOLE DIAMETER (MAX)

72"

C KELLY WINCH LINE PULL (MAX)

30,000 lbs Single Layer Winch Upgrade

CA HOLE DEPTH (MAX)

67 ft

CA ATTACHMENT HEIGHT

19' 8"

CA ROTARY TORQUE (MAX)

80,000 ft-lbs

C KELLY ELEMENTS-SQUARE (MAX)

5

150,000 FT-LBS

ROTARY TORQUE (MAX)

100 FT

HOLE DEPTH (MAX)

168 IN

HOLE DIAMETER (MAX)

TR150 OVERVIEW

Add to your fleet’s capability with Bay Shore’s TR150. This rig boasts 150,000 ft-lbs rotary torque and 35,000 lbf of crowd force, making it a foundation drilling powerhouse. Need a rig that can handle complex site requirements? Bay Shore offers a dynamic range of configurations and custom options to meet your drilling needs.

EOH CONTROL JOYSTICK TECHNOLOGY

Bay Shore System’s drill rigs have always remained on the very cutting edge of technology and their new EOH System is no exception. By moving away from the more traditional pilot-controlled hydraulic systems in favor of ones that are controlled electronically, Bay Shore’s rigs are now compatible with the EOH excavators that have come to be seen as the standard as of late. In addition to ensuring that all Bay Shore attachments can be mounted on the excavator of your choice, this new EOH Control System has other benefits as well. One of which is its streamlined control functionality, which operates by use of a digital touch screen, allowing the operator to change settings on the fly. This innovative feature, coupled with the system’s new advanced troubleshooting capabilities, which include near instantaneous feedback, will drastically reduce your downtime, allowing you to resolve issues that in the past would have taken a day in only a few hours.

FEWER PART ISSUES

  • Kelly winch—improve dependability with 40,000 lbs (max line pull).
  • Shaft diameter—drill shafts ranging from 18 inches to 14 feet in diameter.
  • Optimized transport—improve transportability with the option to disconnect the attachment from the carrier.
  • Drill depth—choose from an impressive range of available drill depth, from 30 to 100 feet.
  • Crowd stroke—drill 168 to 228 inches per pass, depending on the configuration.
