TR25

25,000 FT-LBS

ROTARY TORQUE (MAX)

80 FT

HOLE DEPTH (MAX)

54 IN

HOLE DIAMETER (MAX)

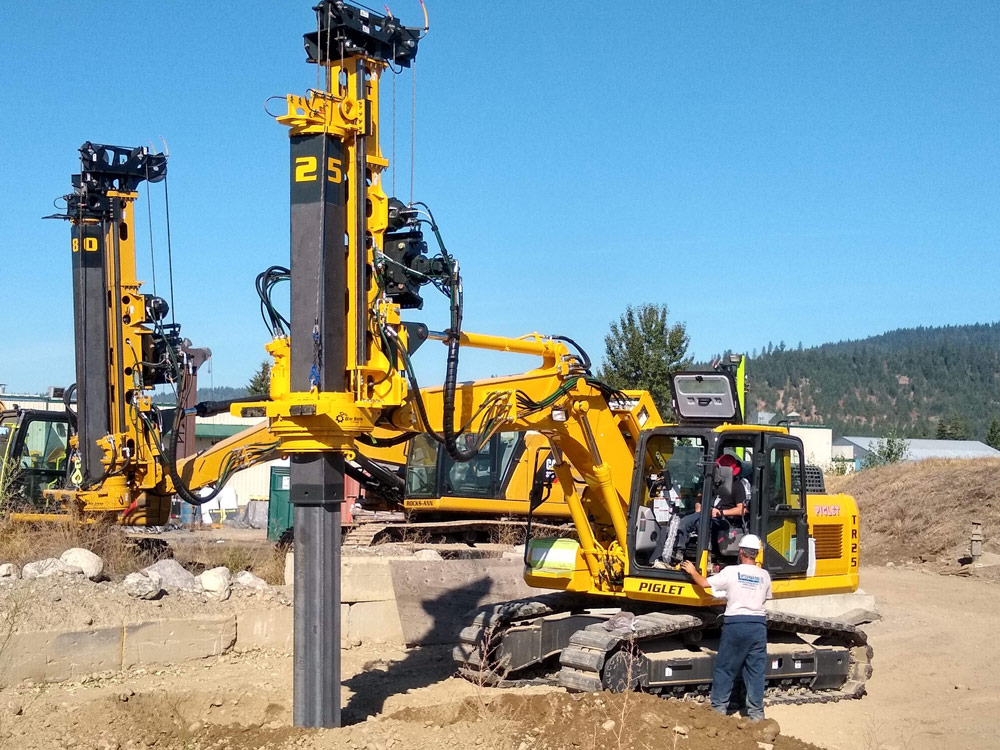

TR25 OVERVIEW

An important addition to Bay Shore System’s ground-breaking TR Series, the TR25 boasts an impressive level of versatility while refusing to compromise on reliability or power. Its low profile, light weight, and intuitive controls make it is easy to operate and with its fully integrated kelly winch and powerful rotary torque, the TR25 is guaranteed to take your projects to new depths. Designed to be the swiss army knife of rigs, it will outperform the competition in a wide variety of conditions: from standard foundation drilling to drilling in rock or near power lines and utility foundations. No matter where the jobs takes you, the TR25 is up to the task.

Fully integrated Kelly Winch

100% hydraulic, with a fully integrated kelly winch, and three different mounted solutions available (truck, track, or excavator), the TR25 gives you more freedom than ever to choose how you approach the job.  For more information on the TR25, contact Bay Shore Systems today.

Electric-over-Hydraulic (EOH) Control System

Bay Shore System’s drill rigs have always remained on the very cutting edge of technology and their new EOH System is no exception. By moving away from the more traditional pilot-controlled hydraulic systems in favor of ones that are controlled electronically, Bay Shore’s rigs are now compatible with the EOH excavators that have come to be seen as the standard as of late. In addition to ensuring that all Bay Shore attachments can be mounted on the excavator of your choice, this new EOH Control System has other benefits as well. One of which is its streamlined control functionality, which operates by use of a digital touch screen, allowing the operator to change settings on the fly. This innovative feature, coupled with the system’s new advanced troubleshooting capabilities, which include near-instantaneous feedback, will drastically reduce your downtime, allowing you to resolve issues that in the past would have taken a day in only a few hours.

recommended rigs for you

FOR PRICING, SERVICE & MORE, FIND HELP NEAR YOU

Rotary torque (max)

25,000 ft-lbs / 35 kN-m

Kelly winch line pull (first layer, max)

18,000 lbs / 80 kN

Hole diameter (max recommended)

54 in / 1,370 mm

Hole diameter (min)

18 in / 450 mm

Drill speed range (LHS)

30-60-100 rpm

Hole depth (max)

80 ft / 24 m

Attachment height

11-18 ft / 3-5 m

Excavator weight class (x1,000)

35–50 lbs / 15–25 kg

Kelly Elements - Square (max)

8

Kelly Elements - RLK (max)

5

Brochure Url

https://www.bayshoresystems.com/wp-content/uploads/2022/08/TR25_Brochure_BSS.pdf

150,000 FT-LBS

ROTARY TORQUE (MAX)

100 FT

HOLE DEPTH (MAX)

168 IN

HOLE DIAMETER (MAX)

TR150 OVERVIEW

Add to your fleet’s capability with Bay Shore’s TR150. This rig boasts 150,000 ft-lbs rotary torque and 35,000 lbf of crowd force, making it a foundation drilling powerhouse. Need a rig that can handle complex site requirements? Bay Shore offers a dynamic range of configurations and custom options to meet your drilling needs.

EOH CONTROL JOYSTICK TECHNOLOGY

Bay Shore System’s drill rigs have always remained on the very cutting edge of technology and their new EOH System is no exception. By moving away from the more traditional pilot-controlled hydraulic systems in favor of ones that are controlled electronically, Bay Shore’s rigs are now compatible with the EOH excavators that have come to be seen as the standard as of late. In addition to ensuring that all Bay Shore attachments can be mounted on the excavator of your choice, this new EOH Control System has other benefits as well. One of which is its streamlined control functionality, which operates by use of a digital touch screen, allowing the operator to change settings on the fly. This innovative feature, coupled with the system’s new advanced troubleshooting capabilities, which include near instantaneous feedback, will drastically reduce your downtime, allowing you to resolve issues that in the past would have taken a day in only a few hours.

FEWER PART ISSUES

  • Kelly winch—improve dependability with 40,000 lbs (max line pull).
  • Shaft diameter—drill shafts ranging from 18 inches to 14 feet in diameter.
  • Optimized transport—improve transportability with the option to disconnect the attachment from the carrier.
  • Drill depth—choose from an impressive range of available drill depth, from 30 to 100 feet.
  • Crowd stroke—drill 168 to 228 inches per pass, depending on the configuration.
