TRt95

98,000 FT-LBS

ROTARY TORQUE (MAX)

100 FT

HOLE DEPTH (MAX)

132 in

hole diameter (max)

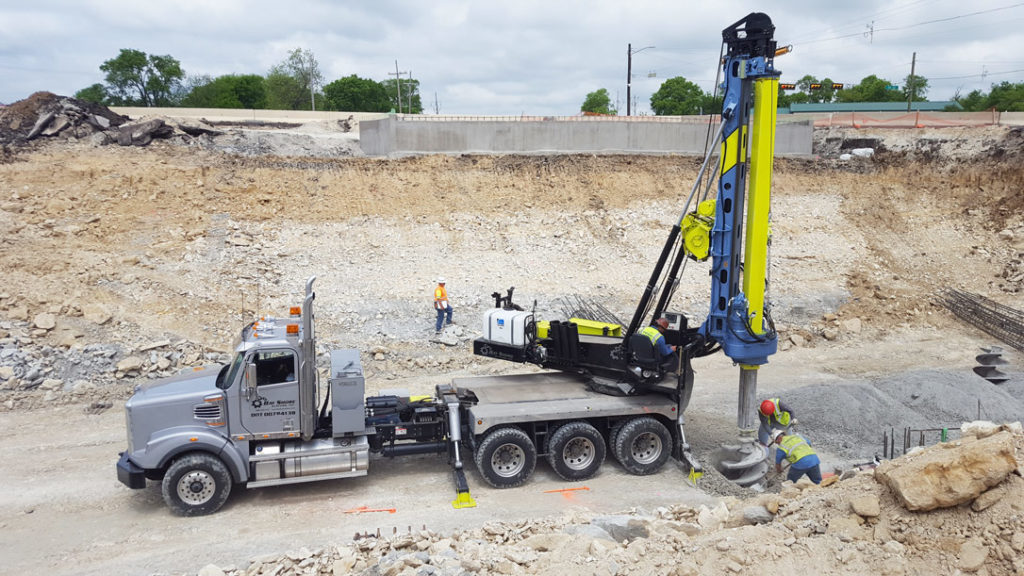

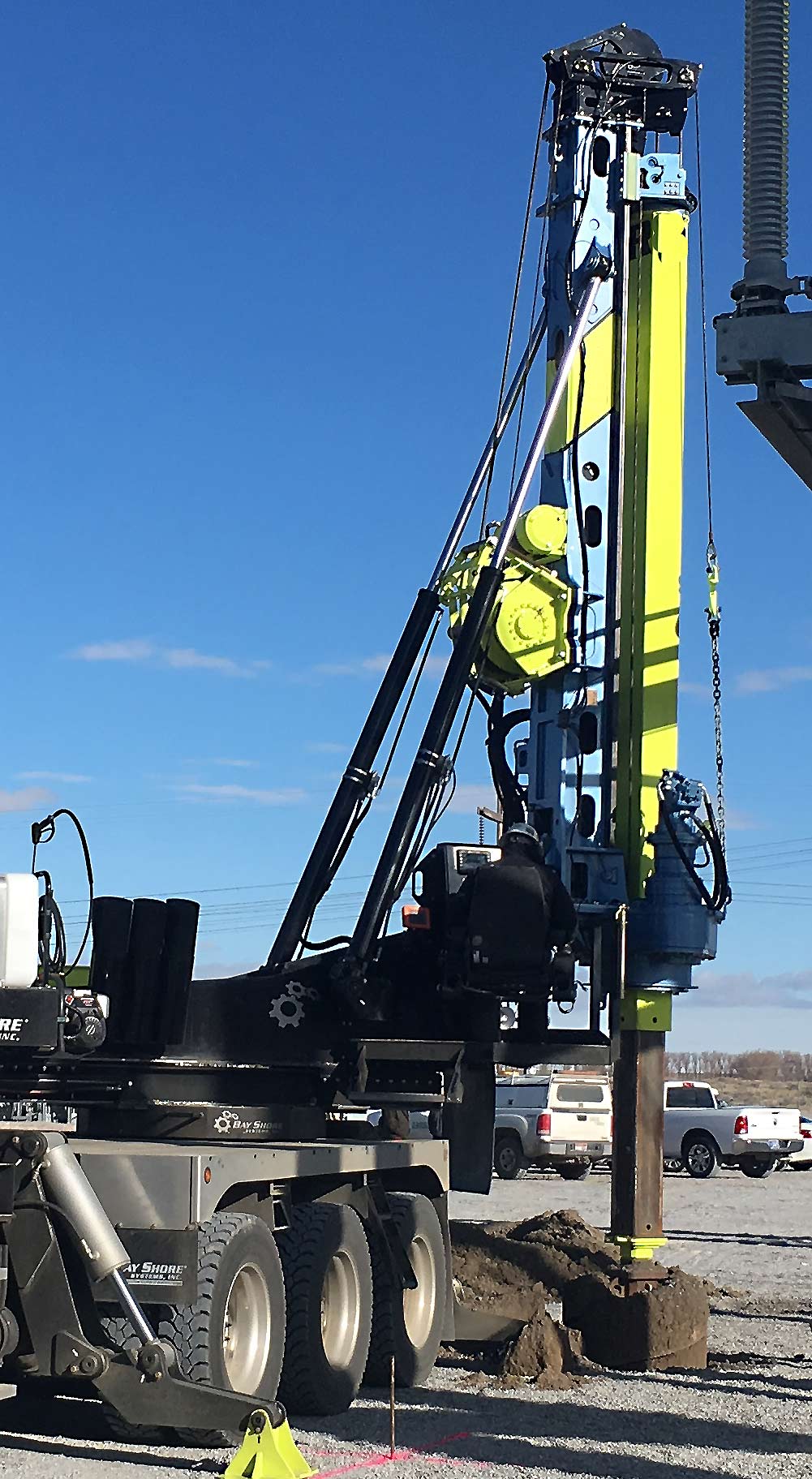

TRt95 Truck LōDril Overview

Looking for a high-performing, truck-mounted rig that offers the flexibility you need to get the job done? Or perhaps you are looking for something with customized hydraulic solutions while also reducing your cost? No matter what your drilling needs are, Bayshore System’s TRt95 is the answer.

EOH CONTROL JOYSTICK TECHNOLOGY

Bay Shore System’s drill rigs have always remained on the very cutting edge of technology and their new EOH System is no exception. By moving away from the more traditional pilot-controlled hydraulic systems in favor of ones that are controlled electronically, Bay Shore’s rigs are now compatible with the EOH excavators that have come to be seen as the standard as of late. In addition to ensuring that all Bay Shore attachments can be mounted on the excavator of your choice, this new EOH Control System has other benefits as well. One of which is its streamlined control functionality, which operates by use of a digital touch screen, allowing the operator to change settings on the fly. This innovative feature, coupled with the system’s new advanced troubleshooting capabilities, which include near instantaneous feedback, will drastically reduce your downtime, allowing you to resolve issues that in the past would have taken a day in only a few hours.

ease of mobility from jobsite to jobsite

With its intuitive controls and diverse carrier brand compatibility, transporting and storing your rig has never been this easy, and its ability to tap the carrier’s engine will significantly reduce excess noise, leading to stronger jobsite communication. We at Bay Shore believe that when it comes to measuring success, how a job is done is just as important as finishing it. That is why when designing the TRt95, the safety of our customers, as well as minimizing our environmental impact, were of the utmost importance to us. With the TRt95, hard work doesn’t have to hurt. For more information on the TRt95, contact Bay Shore Systems today.

Recommended for you

FOR PRICING, SERVICE & MORE, FIND HELP NEAR YOU
Rotary torque (max)

98,000 ft-lbs / 130 kN-m

Kelly winch line pull (first layer, max)

25,000 lbs / 111 kN

Hole diameter (max recommended)

96 in / 2,400 mm

Hole diameter (min)

18 in / 450 mm

Drill speed range (LHS)

30-60-100 rpm

Hole depth (max)

80 ft / 24 m

Kelly Elements - Square (max)

5

Kelly Elements - RLK (max)

4

Brochure Url

https://www.bayshoresystems.com/wp-content/uploads/2022/04/TRt95_Brochure_BSS.pdf

150,000 FT-LBS

ROTARY TORQUE (MAX)

100 FT

HOLE DEPTH (MAX)

168 IN

HOLE DIAMETER (MAX)

TR150 OVERVIEW

Add to your fleet’s capability with Bay Shore’s TR150. This rig boasts 150,000 ft-lbs rotary torque and 35,000 lbf of crowd force, making it a foundation drilling powerhouse. Need a rig that can handle complex site requirements? Bay Shore offers a dynamic range of configurations and custom options to meet your drilling needs.

EOH CONTROL JOYSTICK TECHNOLOGY

Bay Shore System’s drill rigs have always remained on the very cutting edge of technology and their new EOH System is no exception. By moving away from the more traditional pilot-controlled hydraulic systems in favor of ones that are controlled electronically, Bay Shore’s rigs are now compatible with the EOH excavators that have come to be seen as the standard as of late. In addition to ensuring that all Bay Shore attachments can be mounted on the excavator of your choice, this new EOH Control System has other benefits as well. One of which is its streamlined control functionality, which operates by use of a digital touch screen, allowing the operator to change settings on the fly. This innovative feature, coupled with the system’s new advanced troubleshooting capabilities, which include near instantaneous feedback, will drastically reduce your downtime, allowing you to resolve issues that in the past would have taken a day in only a few hours.

FEWER PART ISSUES

  • Kelly winch—improve dependability with 40,000 lbs (max line pull).
  • Shaft diameter—drill shafts ranging from 18 inches to 14 feet in diameter.
  • Optimized transport—improve transportability with the option to disconnect the attachment from the carrier.
  • Drill depth—choose from an impressive range of available drill depth, from 30 to 100 feet.
  • Crowd stroke—drill 168 to 228 inches per pass, depending on the configuration.
